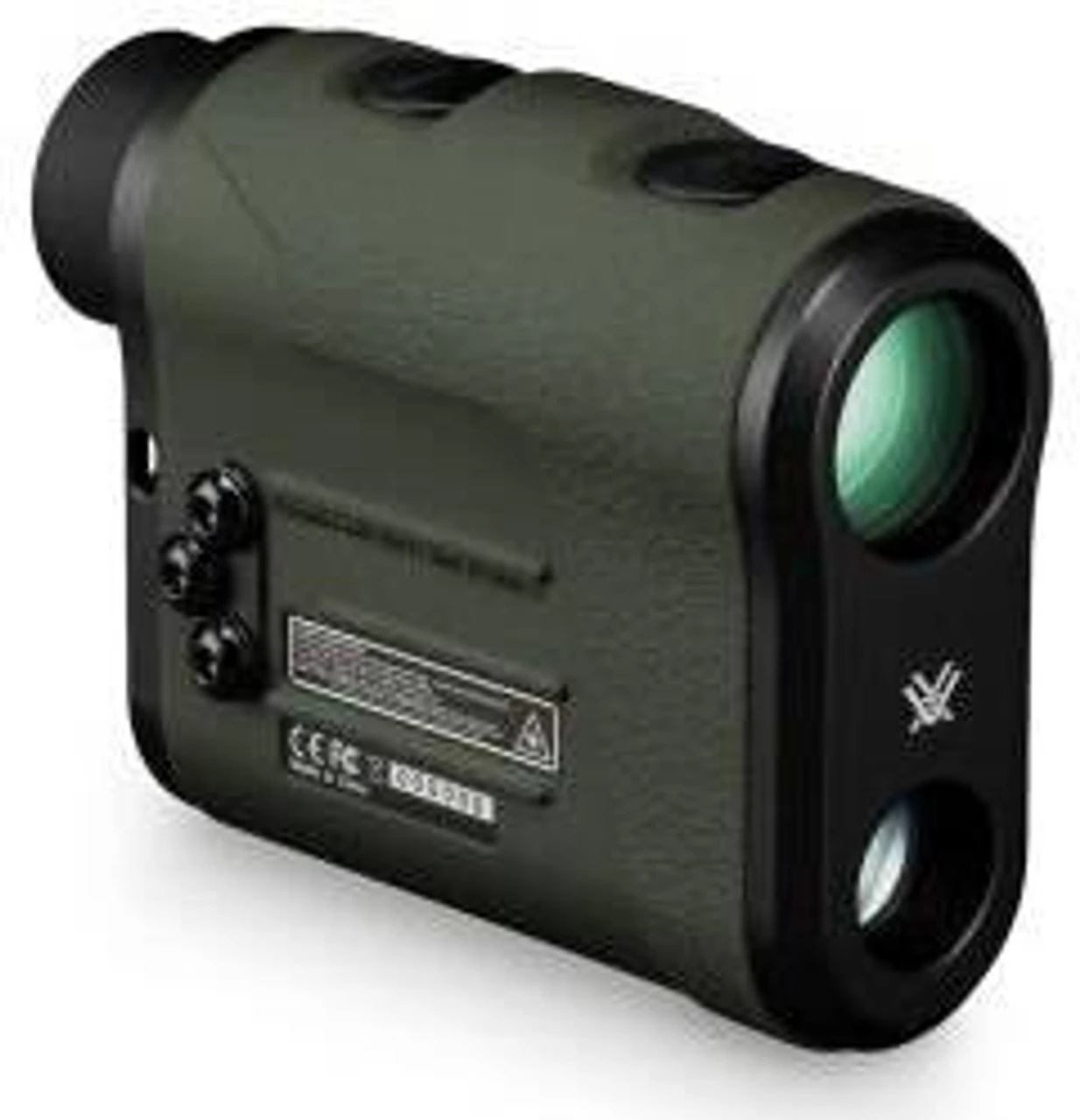

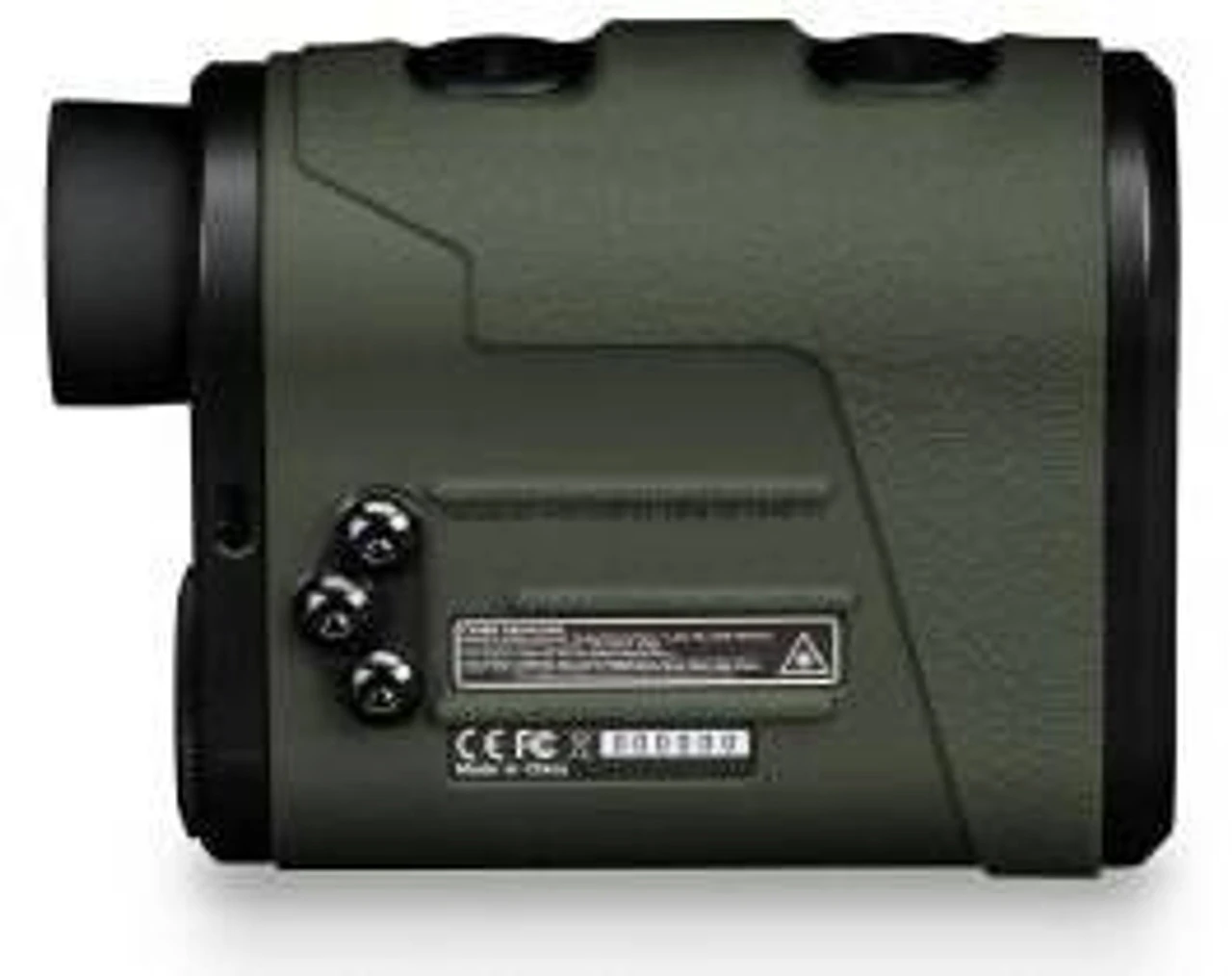

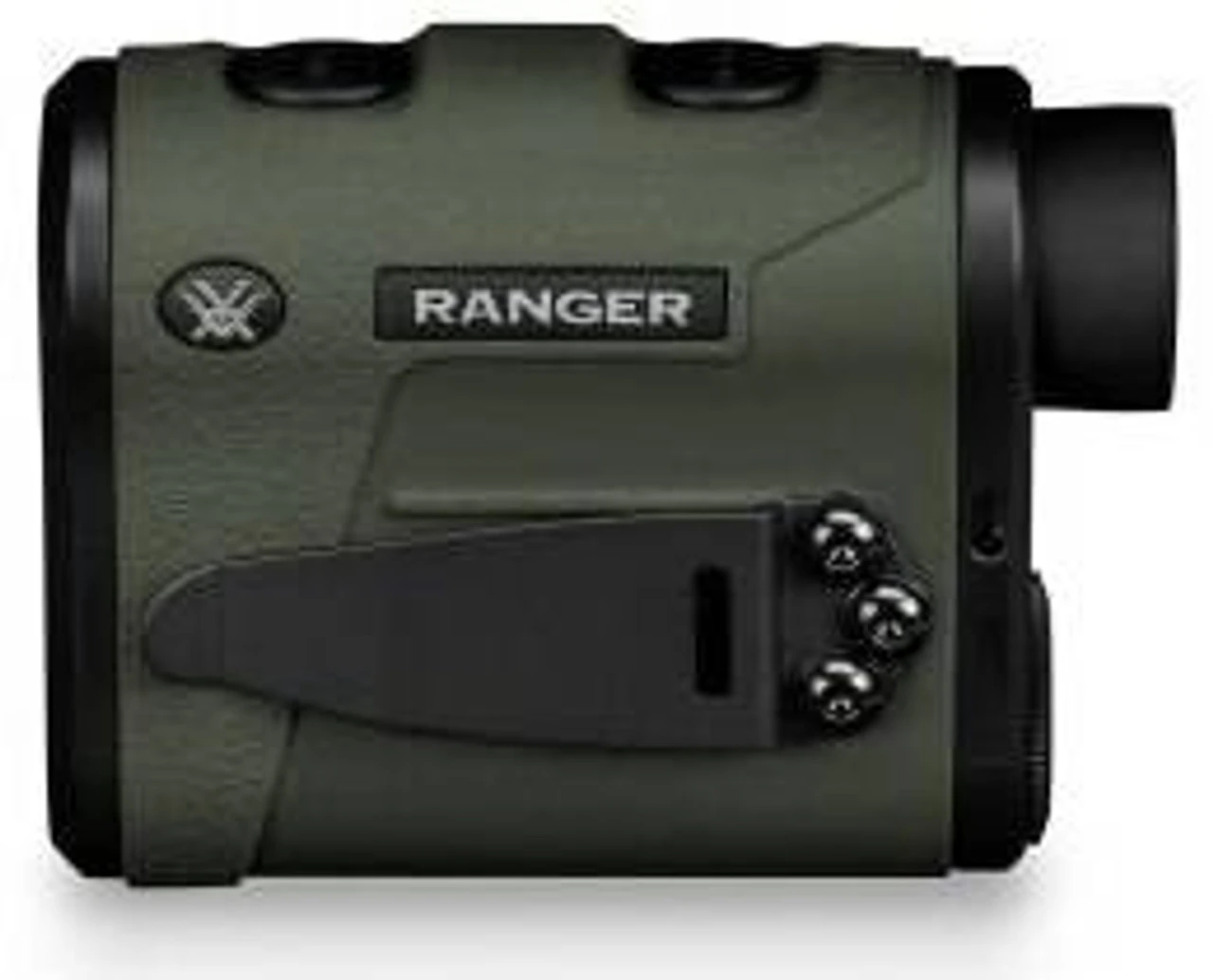

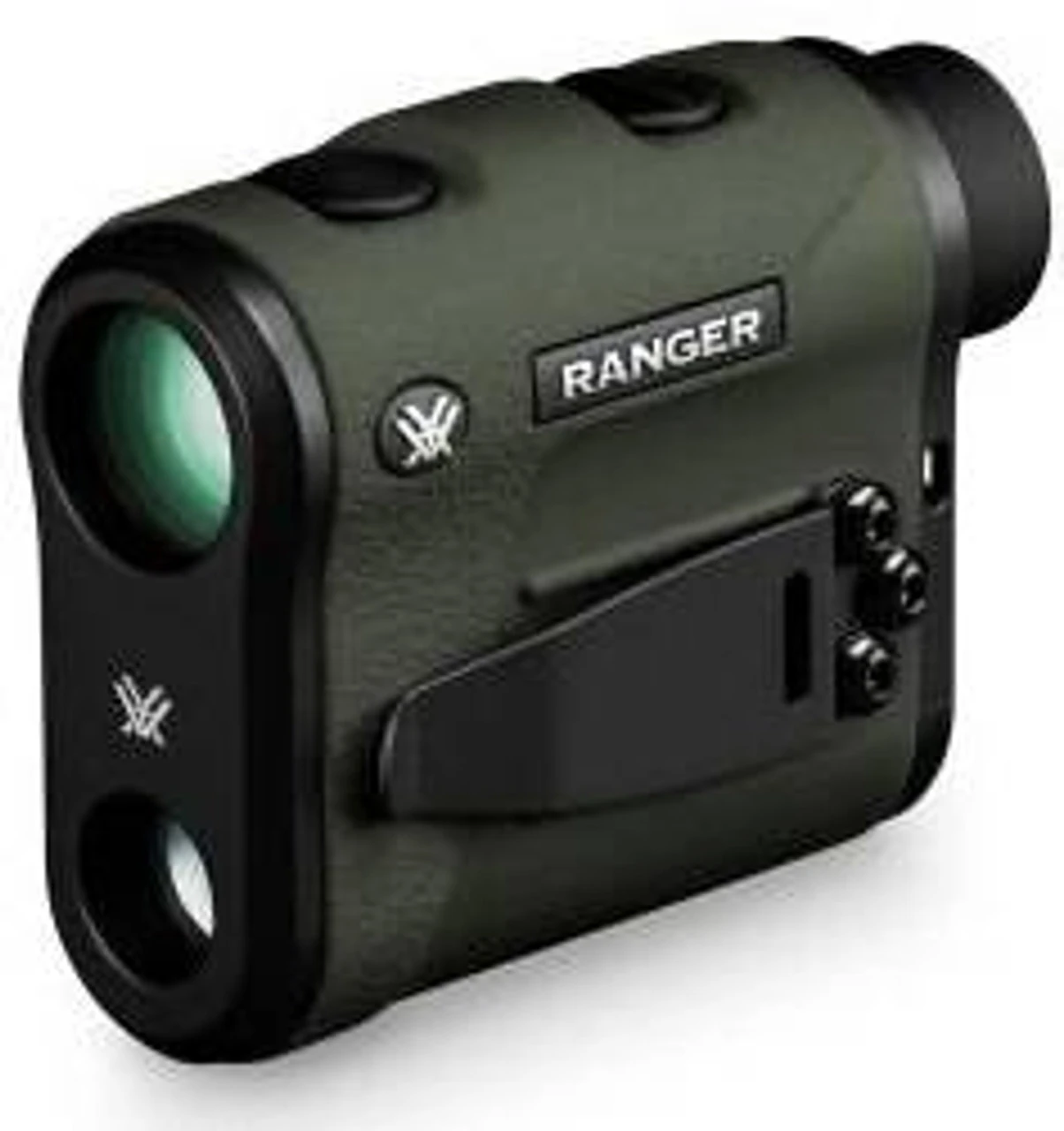

Vortex Ranger 1800 Laser Rangefinder

The Vortex Ranger 1800 Laser Rangefinder bucks the trend of overly complicated electronics that are more of a hindrance of a help in the field. With built in angle compensation for treestand hunters that provides exact horizontal distance the Ranger is three to provide everything you need to calculate complex shots. The utility clip keeps the Ranger close at hand, use these with a tripod for a rock-solid base.

Optical Features:

• Fully Multi-Coated Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

Construction Features:

• Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
• Rugged Design Built to handle tough situations. Compact and lightweight.
• Rubber Armor Provides a secure, non-slip grip, and durable external protection.
• Diopter Adjusts for differences in a user’s eyes. Located on right eyepiece.
• Tripod Adaptable Compatible with a tripod adapter, allowing use on a tripod or car window mount.

Performance Features:

• HCD Horizontal Component Distance (HCD) mode for angle compensated ranging.
• LOS Line of Sight (LOS) mode displays actual line of sight range.
• Scan This feature displays continual distance readings when panning across a landscape or tracking a moving animal.
• Easy-to-use Menu Intuitive, easy-to-use menus feature a simple, clean illuminated display.
• Ranging Format Range in yards or meters.

HCD Corrected Shoot-To Range:

• The Ranger 1800 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.

Included in the Box:

• Utility clip
• Neck lanyard
• Soft carry case
• CR2 battery

Features:

• Range Reflective (yards): 10-1800 yards
• Range Deer (yards): 10-900 yards
• Accuracy: + / – 3 yards @ 1000 yards
• Max Angle Reading: + / – 60 degrees
• Magnification: 6x
• Objective Lens Diameter: 22 mm
• Linear Field of View: 315 feet/1000 yards
• Angular Field of View: 6 degrees
• Eye Relief: 17 mm
• Length: 3.9 inches
• Width: 3 inches
• Weight: 7.7 oz
• Product Manual (PDF) Download
• Parts Diagram (PDF) Download
